Plan your studio routing visually
Design complex audio & MIDI signal flows, manage patchbays, and document your entire setup — all in your browser.
Launch Editor
Design complex audio & MIDI signal flows, manage patchbays, and document your entire setup — all in your browser.
Launch Editor

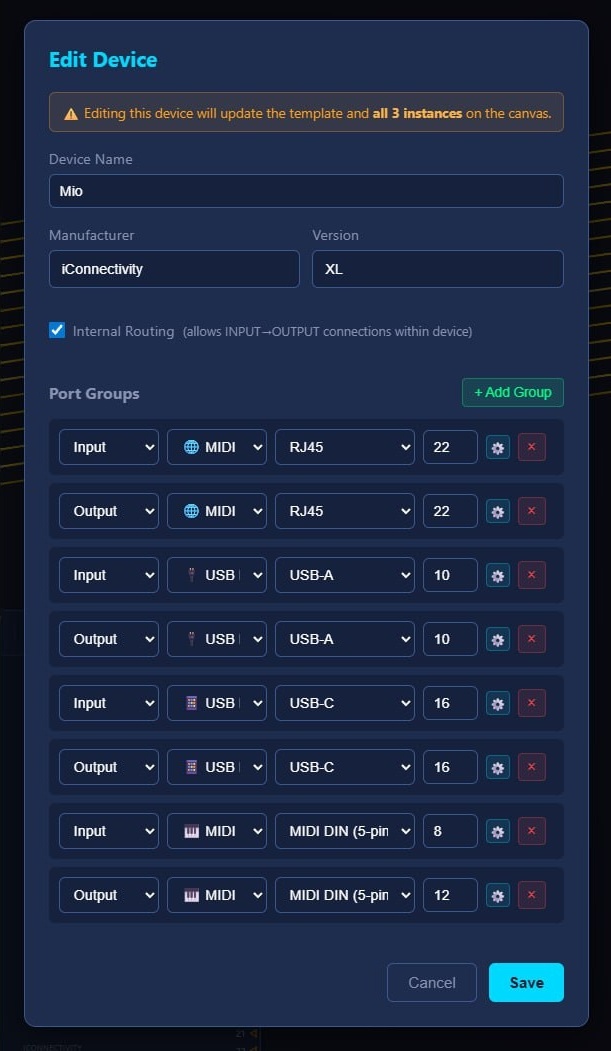

Design routing for almost anything — audio, MIDI, CV, clock, USB, Ethernet, and more. Every connector type you'll actually use.
18 signal types • 25+ connectors

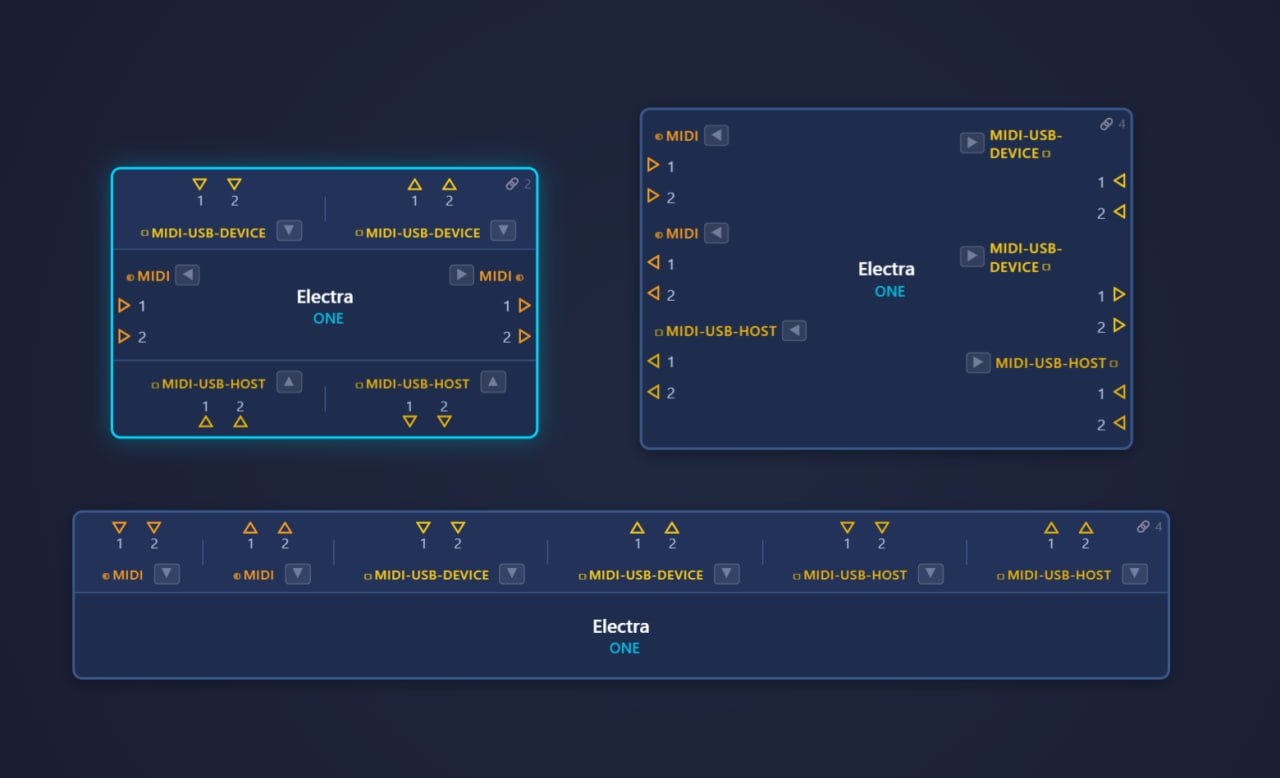

Position every I/O exactly where you want. Most tools force inputs on top, outputs on bottom — Patchwerk lets you arrange ports for cleaner, more readable diagrams.

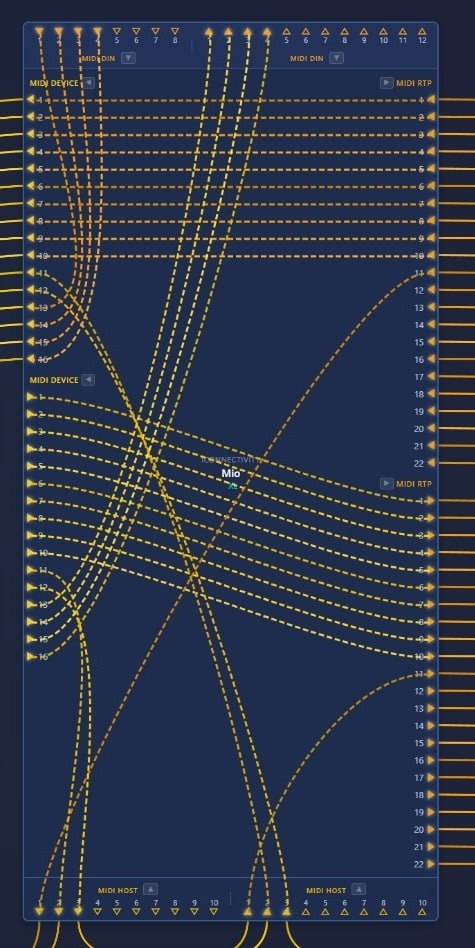

See inside your patchbays and MIDI hubs. Visualize how signals flow through complex routing devices with internal connection mapping.

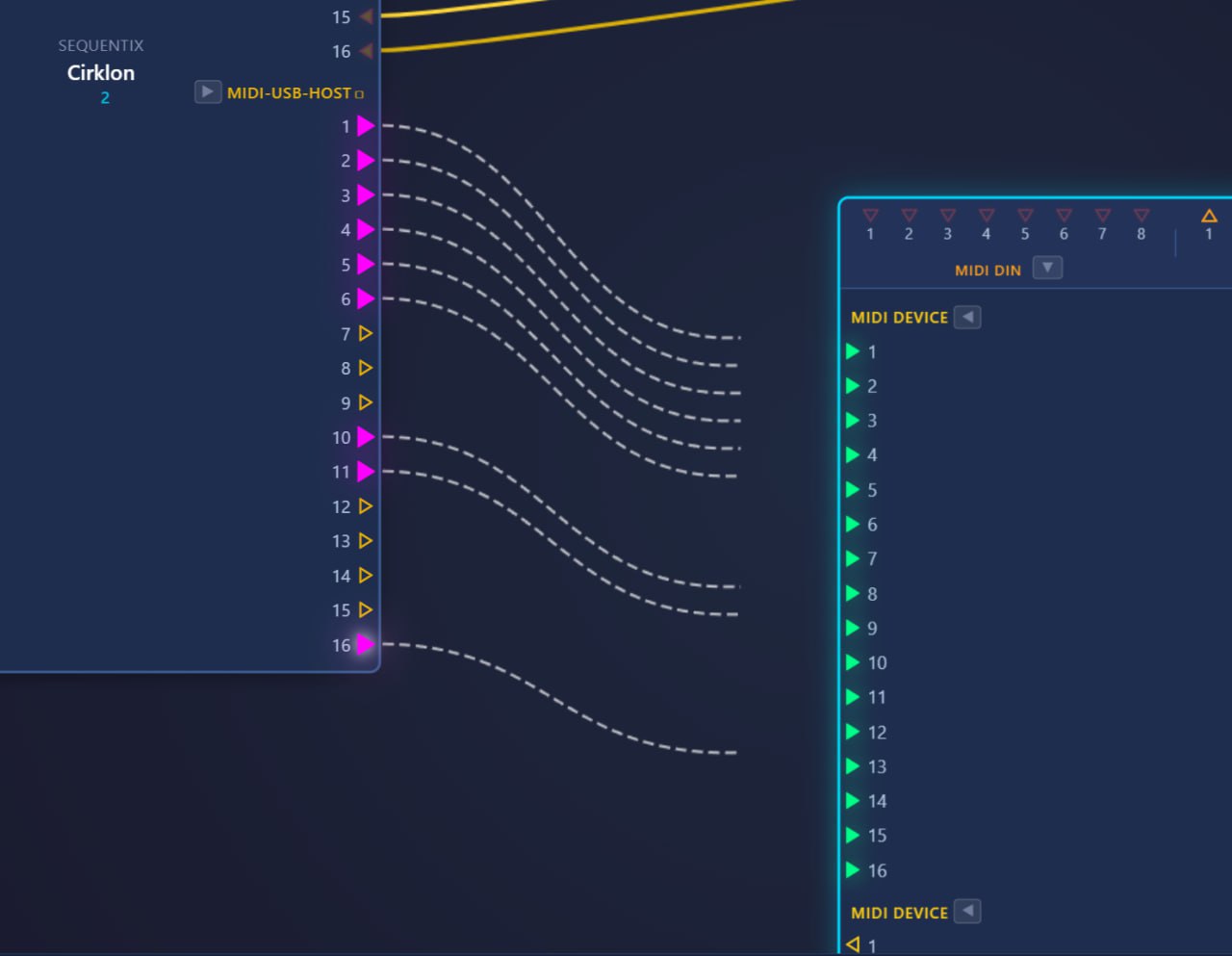

Patch multiple channels in seconds. Select a range of ports and wire them all at once — perfect for multicores, parallel connections, or any repetitive routing.
Thousands of devices ready to drop in. From vintage synths to Eurorack modules to modern interfaces — find your gear and start patching immediately.
Start designing your signal flow right now.
Launch Editor✓ Free to use. No signup required.
